Ridge Window

Ridge Window


10

Year
Guarantee

Keylite Ridge (RG) roof windows may be installed along the roof ridge to maximise light and space at the highest point of the pitched ceiling and create a striking feature.

Keylite RG roof windows are ideal for both domestic and commercial applications, and are available for the following ranges: Centre Pivot (CP), Top Hung (TH), Conservation (CW) and White Finish (WF) Roof Windows all with the option of an Integral Blind (I).

  • Usually installed in out-of-reach locations, these roof windows may be electrically operated by hand-held remote control or a wall-mounted switch.
  • The installation of Keylite RG Roof Windows is very similar to standard roof window installation.
  • The roof windows must be positioned in a way to avoid opening without the sashes colliding.
  • Keylite RG roof windows that are positioned 280mm or greater below the ridge can be fitted using standard Keylite Flashings.
  • Windows that are positioned less than 280mm will require Keylite RG Flashings.

Expanding Thermal Collar

Just pull the tapes and the foam expands to fill the gap between the window and the roof timbers

Learn More

All Weather Ventilation

Keylite Roof Windows all provide trickle ventilation, even with the window fully closed and securely locked.

Ventilation Filter

The built-in insect filter ensures only clean, fresh air passes into the room.

Easy Installation

Simple, Easy.. Fast. From box to roof in 2 minutes. Keylite innovations combine for faster, easier installation.

Installation

easy-fitting-keylite-roof-windows

Streamlined

All our roof windows are recessed for an in roof look.

Streamlined

All our roof windows are recessed for an in roof look.

Roof Window Sizes

Window Size 780x1180 780x1400

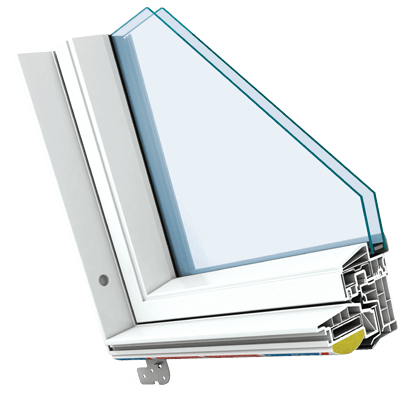

Polar White PVC
Keylite Thermal - Product Code RG-PCP-05-T RG-PCP-06-T
Pine Finish
Keylite Thermal - Product Code RG-CP-05-T RG-CP-06-T
White Finish
Keylite Thermal - Product Code RG-WF-CP-05-T RG-WF-CP-06-T
Window Size 1660x1180 1660x1400
Polar White PVC
Keylite Thermal - Product Code DRG-PCP-05-T DRG-PCP-06-T
Pine Finish
Keylite Thermal - Product Code DRG-CP-05-T DRG-CP-06-T
White Finish
Keylite Thermal - Product Code DRG-WF-CP-05-T DRG-WF-CP-06-T
Window Size 2370x980 2370x1180 2370x1400
Structural Opening Size 2355x2115 2355x2490 2355x2900
Polar White PVC
Keylite Thermal - Product Code TFRX-PCP-04-T TFRX-PCP-05-T TFRX-PCP-06-T
Pine Finish
Keylite Thermal - Product Code TFRX-CP-04-T TFRX-CP-05-T TFRX-CP-06-T
White Finish
Keylite Thermal - Product Code TFRX-WF-CP-04-T TFRX-WF-CP-05-T TFRX-WF-CP-06-T

Roof Window Sizes

Select white or pine finish to reveal roof window sizes

Dimensions
Single
Window Size 780×1180 780×1400
Thermal – Polar White PVC RG-PCP-05-T RG-PCP-06-T
Thermal – Pine Finish RG-CP-05-T RG-CP-06-T
Thermal – White Finish RG-WF-CP-05-T RG-WF-CP-06-T
Double
Window Size 1660×1180 1660×1400
Thermal – Polar White PVC DRG-PCP-05-T DRG-PCP-06-T
Thermal – Pine Finish DRG-CP-05-T DRG-CP-06-T
Thermal – White Finish DRG-WF-CP-05-T DRG-WF-CP-06-T
Triple
Window Size 2370×980 2370×1180 2370×1400
Structural Opening Size 2355×2115 2355×2490 2355×2900
Thermal – Polar White PVC TFRX-PCP-04-T TFRX-PCP-05-T TFRX-PCP-06-T
Thermal – Pine Finish TFRX-CP-04-T TFRX-CP-05-T TFRX-CP-06-T
Thermal – White Finish TFRX-WF-CP-04-T TFRX-WF-CP-05-T TFRX-WF-CP-06-T

Optional Upgrades

White Painted Finish

A fresh and contemporary look. The wipe clean moisture resistant finish is ideal for use in kitchens, bathrooms and other humid areas.

Electric Operation

Electric Operation Fingertip control for out of reach locations.

Integral Blind

The clever built in shading solution with the blind enclosed between the glass and therefore is protected from moisture, dust or damage.

Glazing Options

Keylite Roof Windows can be supplied with a wide range of glazing variants.

Install Components

Felt and Vapour Collars available.

Conservation

Designed to complement both renovation & new build projects in a traditional style. It is ideal for use in a period style property.

Smoke Vent

Designed to open automatically in the event of a fire.

Keylite Blinds

Choose easy fitting Keylite Blinds to control light and privacy in your home.

Why Keylite?

Visit our Why Keylite? Page

Service & Support

Service & Support

Our technical experts are on hand to advise and assist you at the design and specification stage.

Service & Support

Patented Innovation

Our patents mean that other conventional roof windows do not share many of our extraordinary features.

Service & Support

10 Year Guarantee

We are confident that our products will give trouble free performance throughout this period and beyond.
