Sun Lite Tube System


Sunlite

Tube System

A Keylite Sunlite Light Tube System transports natural daylight into areas where conventional pitched or flat roof windows cannot be used.

The highly reflective light tube enables daylight to travel from the roof to an interior space deprived of natural light. Keylite recommend a minimum 350mm diameter Rigid Light Tube System to achieve 98% reflectance.

badge-sunlite
Configure & Buy

A Keylite Sunlite includes:

  • Roof flashing and covering.
  • Preferred tubing - flexi or rigid (rigid recommended).
  • White ceiling diffuser.
  • Flat Roof upstand (SLRF only).

Shaune Hicks

Construction Director
Larkfleet Homes SW
"I had a Keylite Sunlite fitted at my home in Taunton, Somerset following an extension I had built last year where all the windows within a stairwell were eliminated and thus zero natural light. I am genuinely so impressed with this product – it only took 4 hours to install and the difference it has made in terms of the light it has shed into our dark stairwell has been incredible.
This is a proper 5 star product."

Sunlite

Pitched Roof


Features

  • Magnetic fixings allow for quick installation and easy cleaning of ceiling diffuser.
  • Click fit installation.
  • Exterior Self-Cleaning Glass ensuring maximum daylight is achieved and is simple to maintain.
  • Ventilated with unique fittings at both roof and ceiling levels, which combat the risk of condensation.

Recommended Use

  • 250mm Diameter
    Bathroom, WC, small hallway. Suitable for rooms up to 3m x 3m.
  • 350mm Diameter
    Bathroom, en suite, hall. Suitable for rooms up to 4m x 4m.
  • 450mm Diameter
    Bathroom, office, hall, corridor. Suitable for rooms up to 5m x 5m.
  • 530mm Diameter
    Living room, office, kitchen, hallway. Suitable for rooms up to 6m x 6m.

Note: Please specify Tile, Slate or Plain Tile flashing when placing your order. If roof void is more than 2m, please call the Keylite Technical Team.

Configure & Buy

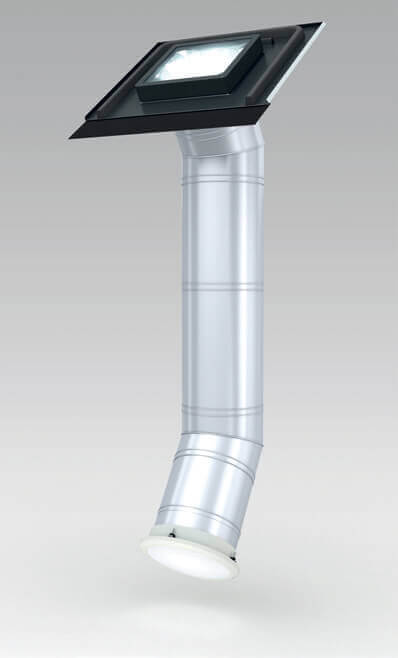

Rigid System

SLRSS - For slate installation
SLRST - For profiled or flat tile installation.

For optimum performance

Keylite's rigid tube system is made using hard wearing, mirror finished, polished aluminium tube with 98% reflectance.

Tube length
  • 2m

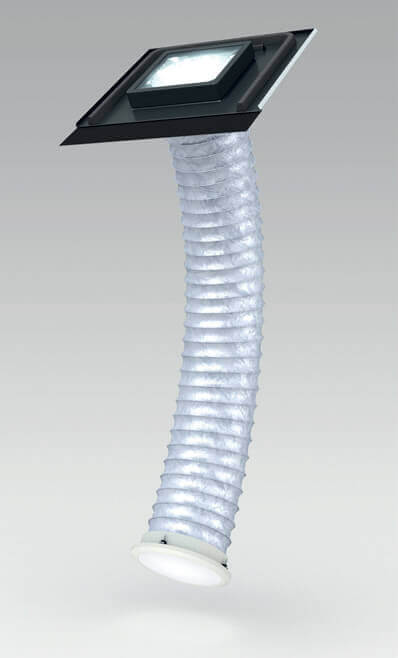

Flexi System

SLRFSS - For slate installation
SLFST - For profiled or flat tile installation.

For versatility

Recommended for installations where obstructions within the roof prohibit the use of a rigid system. This system offers 83% reflectance.

Tube length
  • 2m

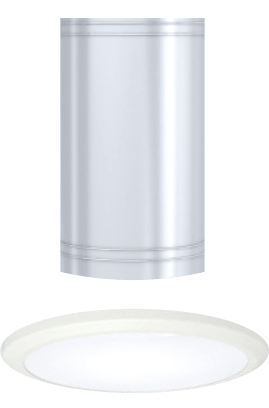

Sunlite Accessories

Mechanical Ventilation is available as an option, please contact the Keylite Technical Team for more information.

Sizes Fluorescent
Lamps
Rigid Extension
(625mm)
250mm SLL SLRE 250
350mm SLL SLRE 350
450mm SLL SLRE 450
530mm SLL SLRE 530

Sunlite

Flat Roof


Features

  • Inclusive of all the innovative features of a Sunlite.
  • The Keylite Flat Roof Sunlite is now supplied with a unique timber insulated up-stand as standard to ensure the installation is as simple as possible.

Recommended Use

  • 350mm Diameter
    Bathroom, en suite, hall, small staircase. Suitable for rooms up to 4m x 4m.
  • 450mm Diameter
    Bathroom, office, hall, corridor. Suitable for rooms up to 5m x 5m.
  • 530mm Diameter
    Living room, office, kitchen, hallway. Suitable for rooms up to 6m x 6m.

Configure & Buy

Rigid System

Our rigid system uses Alanod Miro Silver with a total reflection of 98%. It provides highly efficient illumination with low transmittance loss. Moreover, it is extremely hard-wearing, does not fade and does not lose its reflective power.

Tube length
  • 800mm
Sun Lite Accessories
Sizes Fluorescent Lamps Rigid Extension (625mm)
250mm SLL SLRE 250
350mm SLL SLRE 350
450mm SLL SLRE 450
530mm SLL SLRE 530
Why Keylite?

Learn More

Service & Support

Our technical experts are on hand to advise and assist you at the design and specification stage.

Patented Innovation

Our patents mean that other conventional roof windows do not share many of our extraordinary features.

10 Year Guarantee*

We are confident that our products will give trouble free performance throughout this period and beyond. *See Guarantee terms
