Integral Blind

Integral Blind


The roof window with a blind permanently enclosed between the panes of glass and therefore is protected against moisture, dust and damage.

Factory fitted blind, sealed inside the energy efficient double glazing unit.

Requires no cleaning – ideal for sterile and/or hygienic environments e.g. Hospitals or Surgeries.

Provides enhanced sun-shading & improves the U-Value of the sealed unit.

Available in manual or electric options.

Glazing Type Ug W/(m2.K) Rw, r dB g Tv TuV
I (Integral Blind) 1.0 32 59.8 80.1 35.0

Roof Window Sizes


(nominal)(WxH) mm 550x780 550x980 660x1180 780x980 780x1180 780x1400 940x1600 1140x1180 1340x980
  Centre Pivot Roof Window with Manual Integral Blind
POLAR WHITE PVC I-PCP-01-T I-PCP-02-T I-PCP-03-T I-PCP-04-T I-PCP-05-T I-PCP-06-T - I-PCP-08-T I-PCP-09-T
PINE FINISH I-CP-01-T I-CP-02-T I-CP-03-T I-CP-04-T I-CP-05-T I-CP-06-T I-CP-07-T I-CP-08-T I-CP-09-T
WHITE FINISH WF-I-CP-01-T WF-I-CP-02-T WF-I-CP-03-T WF-I-CP-04-T WF-I-CP-05-T WF-I-CP-06-T WF-I-CP-07-T WF-I-CP-08-T WF-I-CP-09-T
  Top Hung/Fire Escape Roof Window with Manual Integral Blind
POLAR WHITE PVC - I-PTH-02-T I-PFE-03-T I-PFE-04-T I-PFE-05-T I-PFE-06-T - I-PFE-08-T -
PINE FINISH - I-TH-02-T I-FE-03-T I-FE-04-T I-FE-05-T I-FE-06-T I-FE-07-T I-FE-08-T -
WHITE FINISH - WF-I-TH-02-T WF-I-FE-03-T WF-I-FE-04-T WF-I-FE-05-T WF-I-FE-06-T WF-I-FE-07-T WF-I-FE-08-T -
  Electric Upgrades for Integral Blind Windows
Manual Window, Electric Blind Centre Pivot & Top Hung EI-01-T EI-02-T EI-03-T EI-04-T EI-05-T EI-06-T EI-07-T EI-08-T EI-09-T
Std Elec Window, Electric Blind, Centre Pivot Only EI-01-T-SEK EI-02-T-SEK EI-03-T-SEK EI-04-T-SEK EI-05-T-SEK EI-06-T-SEK EI-07-T-SEK EI-08-T-SEK EI-09-T-SEK
Prem Elec Window, Electric Blind, Centre Pivot Only EI-01-T-PEK EI-02-T-PEK EI-03-T-PEK EI-04-T-PEK EI-05-T-PEK EI-06-T-PEK EI-07-T-PEK EI-08-T-PEK EI-09-T-PEK

Roof Window Comparison Chart

Height (mm) Width (mm)
550 660 780 940 1140 1340

Keylite

780 01 03A 04A 07A 08A 09A

Velux

CK02 N/A N/A N/A N/A N/A

Fakro

01 22 23 24 25 26

Keylite

980 02 03B 04 07B 08B 09

Velux

CK04 FK04 MK04 PK04 N/A UK04

Fakro

02 03 05 15 N/A 12

Keylite

1180 01C 03 05 07C 08 09C

Velux

CK06 FK06 MK06 PK06 SK06 N/A

Fakro

16 04 06 08 10 N/A

Keylite

1400 01F 03F 06 07F 08F 10

Velux

N/A FK08 MK08 PK08 SK08 UK08

Fakro

N/A N/A 07 09 11 N/A

Keylite

1600 01G 03G 04G 07G 08G 09G

Velux

N/A N/A MK10 PK10 SK10 UK10

Fakro

N/A N/A 13 80 N/A N/A

Optional Upgrades

Polar White PVC

On trend modern styling, making it the only window you’ll ever need.

White Painted Finish

A fresh and contemporary look. The wipe clean moisture resistant finish is ideal for use in kitchens, bathrooms and other humid areas.

Glazing Options

Keylite Roof Windows can be supplied with a wide range of glazing variants.

Electric Operation

Electric Operation Fingertip control for out of reach locations.

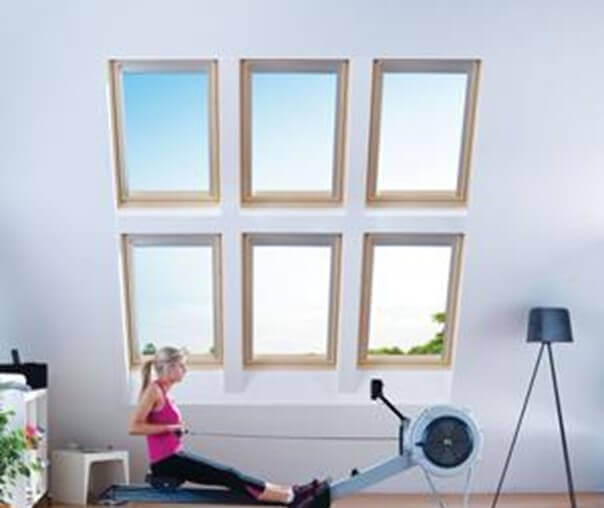

Combination

Create the perfect solution for your project – Combi, Bi-Lite or Grid.

Conservation

Designed to complement both renovation & new build projects in a traditional style. It is ideal for use in a period style property.

Smoke Vent

Designed to open automatically in the event of a fire.

Install Components

Felt and Vapour Collars available.

Why Keylite?

Learn More

Service & Support

Our technical experts are on hand to advise and assist you at the design and specification stage.

Patented Innovation

Our patents mean that other conventional roof windows do not share many of our extraordinary features.

10 Year Guarantee*

We are confident that our products will give trouble free performance throughout this period and beyond. *See Guarantee terms
